Pool and Hot Tub Electrical Wiring Durham, NC
Water and electricity have to be kept apart the right way. As a licensed pool electrician, Brian Electric wires pools and hot tubs in Durham and nearby towns, from the pump and heater to the bonding and GFCI protection.
- Licensed in North Carolina
- Inground and above-ground pools
- Bonding and permits handled
What We Wire
What Pool Electrical Work Covers for Durham Homes
A pool has more electrical parts than most people think, and all of them sit near water. As a licensed electrician in Durham, NC, we wire inground and above-ground pools from the panel to the pump pad.
Pumps and Filters
Single speed, two speed and variable speed pumps, on their own GFCI-protected circuit.
Heaters and Heat Pumps
Heat pumps draw a lot of power, so they need a large 240V circuit sized to the unit.
Pool Lights
Underwater lights, LED upgrades and low voltage lights around the deck.
Automation Systems
Control panels from Pentair, Hayward and others that run your pump, lights and heat on a schedule.
Bonding and Grounding
The copper bonding grid and the equipment grounds that keep the water and deck safe.
Outdoor Outlets
GFCI outlets at the right distance from the water for the vacuum, music and string lights.
We work with homeowners, pool builders, and HOAs that run community pools.
Safety
Bonding and Grounding Are Not the Same
People use the two words as if they mean one thing. They do two different jobs, and a safe pool needs both.
Grounding
A ground wire gives stray current a safe path back to the panel, so the breaker or GFCI trips. It protects you when a pump or light has a fault.
Equipotential Bonding
A loop of solid copper wire, size 8 AWG or larger, ties every metal part near the pool together. Everything stays at the same voltage, so current has no reason to flow through a swimmer.
What gets bonded
- Steel in the pool shell or metal walls
- The deck within 3 feet of the edge
- Ladders, rails and diving board stands
- The pump motor and heater
- Metal fences and posts close to the pool
- The pool water itself
Older pools
Bonding sits under the deck, so you cannot see it. On older pools it is often missing, rusted through or cut during a deck repair. We test it and fix what we find. Above-ground pools need bonding too, since most have metal walls or frames.
Code and Safety
GFCI Protection and Safe Distances Around Your Pool
Water and power need space between them. The electrical code sets clear distances from the pool, and every circuit near it needs GFCI protection. Here are the ones homeowners ask about most.
- 5 ft
Light switches
At least 5 feet from the water, unless a wall or fence is between them.
- 6 ft
Outlets
No closer than 6 feet. Every regular outlet within 20 feet needs GFCI protection.
- 6 to 20 ft
One outlet required
Homes need at least one outlet between 6 and 20 feet from the pool.
- Overhead
Power lines
Wires over or near the pool need extra height, and some cannot cross it at all.
Protection we add around every pool
- Pool pump and filter
- Pool lights
- Hot tub or spa
- Every outlet within 20 feet
Lighting
Pool Lights
Good lighting makes a pool safer at night and nicer to look at. We replace and upgrade the lights in and around the water.
LED Light Conversion
LED pool lights use far less power than old incandescent ones and last much longer. Many can change color. In most pools we swap the light without draining, since the fixture has extra cord coiled behind it and lifts out onto the deck.
Low Voltage Lights
12V lights run through a transformer, which adds a layer of safety near water. They work well for steps, deck edges and the yard. For lights farther from the pool, see our landscape lighting page.
Hot Tubs

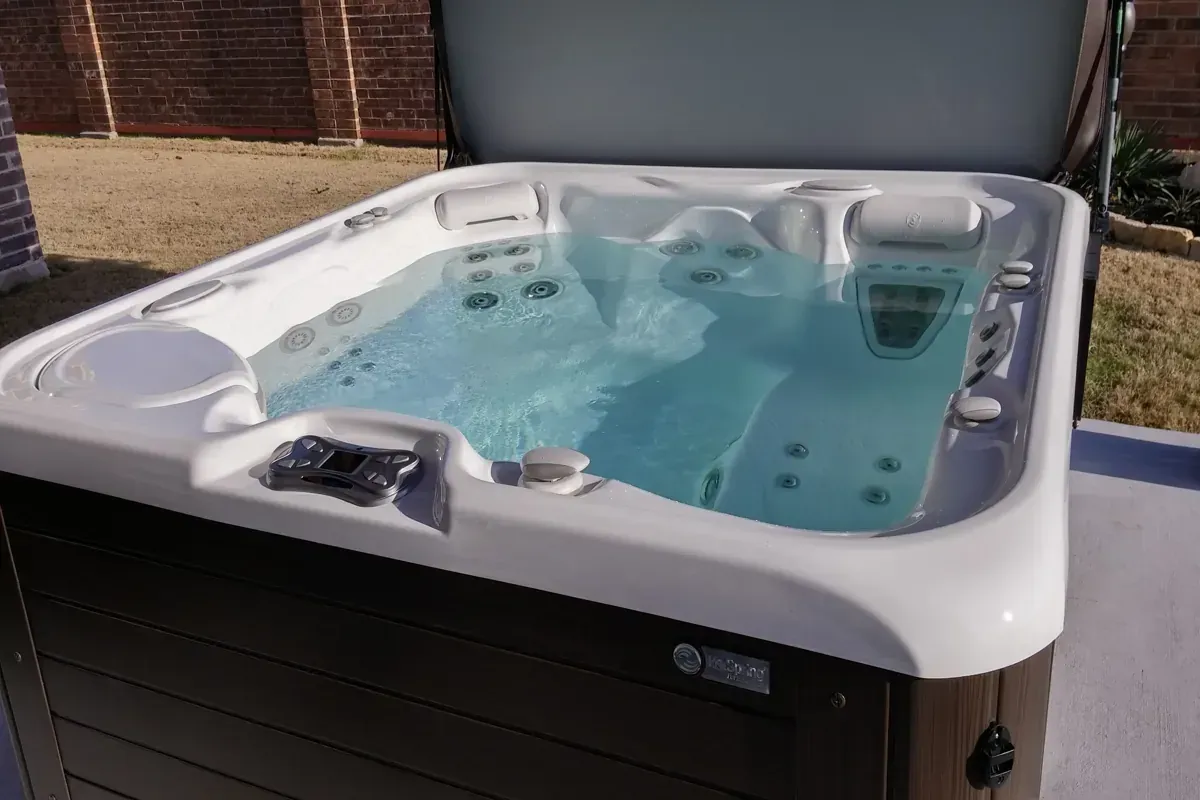

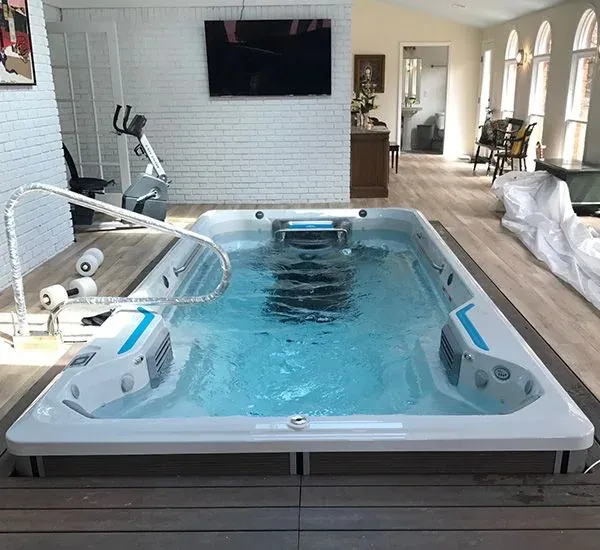

Hot Tub and Spa Wiring
Most hot tubs need more than a plug. Bought one already? Tell us the model, and we wire it to match the maker's specs.
A safe hot tub hookup has
- A dedicated 240V circuit sized to your tub
- GFCI protection, often built into the disconnect
- A shutoff switch within sight of the tub, at least 5 feet away
- Bonding for metal parts close to the tub
Plug-in tubs on 120V are the exception. They still need a GFCI outlet on their own circuit.
Feel a tingle in the water? Get everyone out right away, without touching metal. Do not jump in to help someone. Turn off the pool breakers if it is safe, then call our emergency electrician line.
Repairs
Pool Electrical Problems We Fix in Durham
We troubleshoot the electrical side of pools and hot tubs, no matter who wired them first.
GFCI keeps tripping
Water in a light niche or junction box, a worn pump motor, or a damaged wire underground.
Pump will not start
A tripped breaker, a failed timer or relay, or a loose connection at the motor.
Lights are out
A burned out bulb, a leaking fixture or a bad transformer.
Automation not responding
Loose control wiring, a failed relay or a power problem at the panel.
Rusty or burned connections
Pool chemicals and moisture eat away at wires and terminals over time.
New Pools
How We Wire a New Pool in Durham, NC
Building a pool? Bring us in early. Bonding has to go in before the concrete, and the panel has to handle the new load. We work with your pool builder on timing.
Plan and Load Check
We look at the equipment list and your panel. Pumps, heaters and lights add up fast.
Permit
We pull the electrical permit before any digging starts.
Bonding Before Concrete
We install the copper bonding grid. The inspector checks it before the deck is poured.

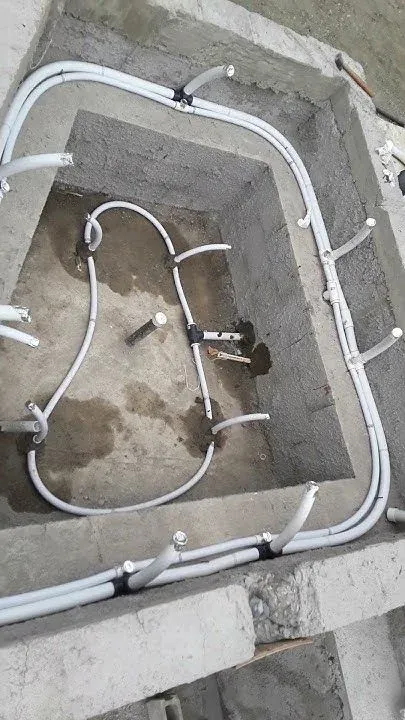

Trench, Conduit and Wiring
We run wire in buried conduit to the equipment pad and hook up the pump, heater, lights and controls.
Final Inspection and Test
We test every GFCI and circuit, pass the final inspection and show you how it all works.
Many older homes in Durham have 100 amp service. A pool with a heat pump can push that past its limit. If so, a panel upgrade comes first, and we plan both together.
Service Area
Pool Electrical Wiring in Durham and the Triangle
We are based in Durham and wire pools and hot tubs all over the Triangle. Not sure if we come to your town? Call and ask.
Neighborhoods We Serve
View All Service AreasFAQ
Pool Electrical FAQs
Planning a pool or hot tub, or fighting a GFCI that will not stay on? Call and tell us about it, and we will tell you what comes next.
Call (984) 271-2113How much does it cost to wire a pool?
It depends on the pool type, how far the equipment pad is from your panel, what equipment you have and whether your panel needs an upgrade. After we see the site and the equipment list, you get a written price.
Do I need a permit for pool wiring in Durham?
Yes. Pool wiring needs an electrical permit, and the bonding is inspected before the deck is poured. We pull the permit and set up each inspection.
Should I have the bonding on my older pool checked?
Yes, especially if the deck was replaced or you feel a tingle near the water. Bonding is buried, so it can be missing or broken without any sign. We test it and fix what we find.
Do you have to drain the pool to replace a light?
Usually not. Most underwater lights have extra cord coiled behind them, so the fixture lifts out to the deck for the repair.
How close to the pool can an outlet go?
Regular outlets must be at least 6 feet from the inside wall of the pool, and every outlet within 20 feet needs GFCI protection. Homes also need at least one outlet between 6 and 20 feet away.
Why does my pool GFCI keep tripping?
Common causes are water in a light or junction box, a pump motor going bad, or a damaged underground wire. A GFCI that trips is doing its job, so do not replace it with a regular breaker. Call us to find the cause.
Can you wire a hot tub I already bought?
Yes. Send us the model, and we check the circuit size and disconnect the maker calls for. Then we plan the wire run from your panel.
Do you work with pool builders and HOAs?
Yes. We wire new pools alongside pool builders, and we handle electrical work for HOA and community pools as well as private homes.
